Duct Trapeze

Description

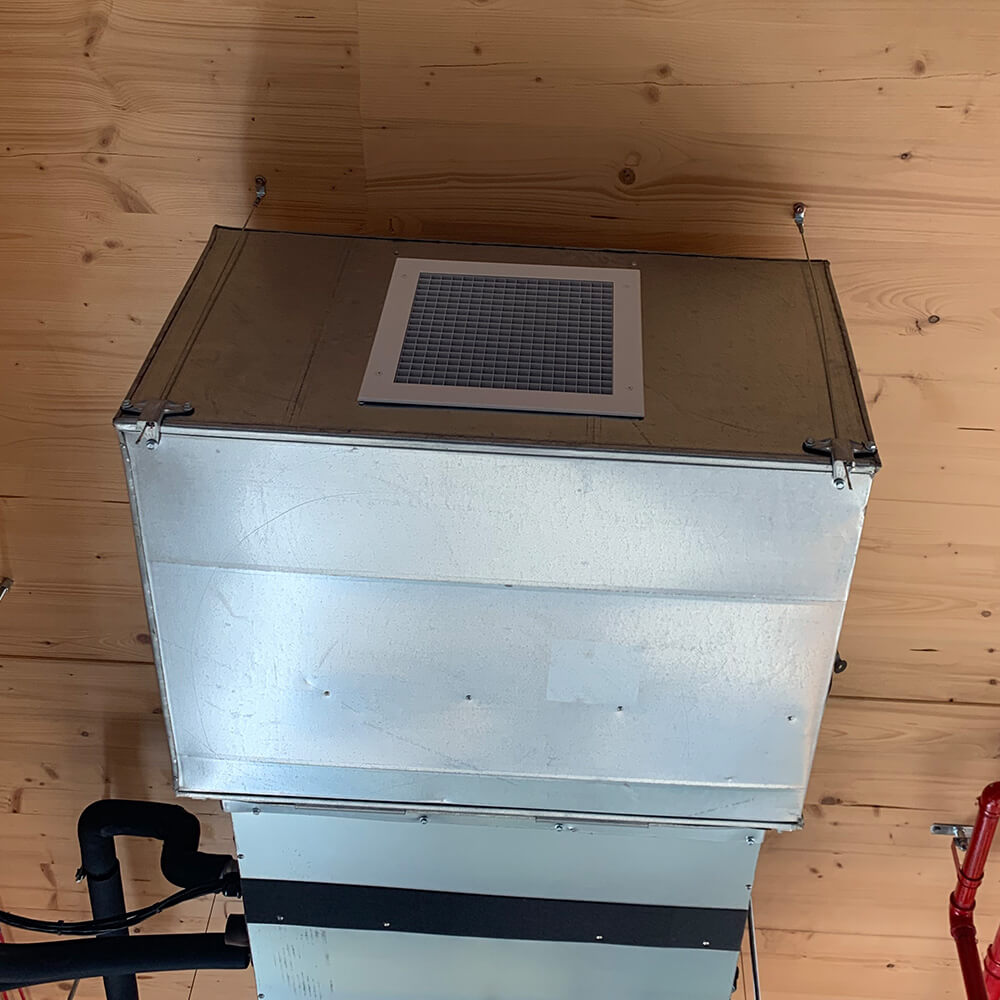

A purpose made, single channel hanger ideal for fast suspension of rectangular ducting and attenuators and other HVAC installations.

Available in No.2 up to 45 kg SWL

  • Eliminates channel support
  • Suitable for ducting made from 0.6 1.5 mm gauge steel
  • Spreads the load across 3 fixing points, for self-drilling screws or pop rivets (not provided)
  • Rubber pad prevents leakage and dampens vibration
  • Conforms to DW144 class C

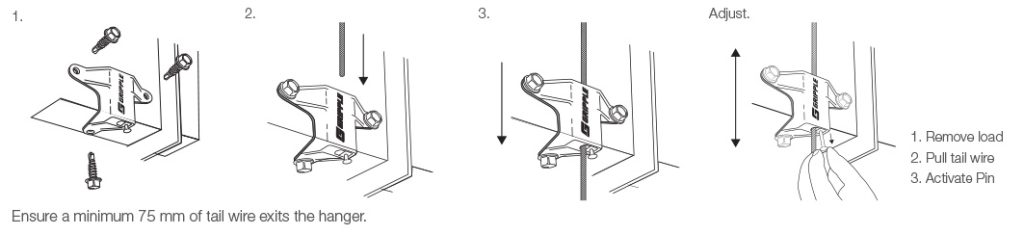

  • Pin allows rapid adjustment
  • Load rated at 45 kg with a 5:1 safety factor
  • Supplied as a ready-to-use kit
5:1 safety factor for load ratingNo.2
45 kg
