Description

The Universal Clamp is designed for hanging all types of pipework within mechanical and plumbing services.

• Suitable for pipe sizes 15 mm yo 104 mm OD
• Up to 6 times faster than traditional methods such as threaded rod
• Replaces more than 11 different pipe clamp sizes
• Dual connection thread M8/M10
• Temperature resistance: -40C to +110C
• Retractable, removable sleeve is pre-fitted to wire rope to prevent galvanic corrosion
  • Single piece cast construction – not welded
  • Clamping range without gaps

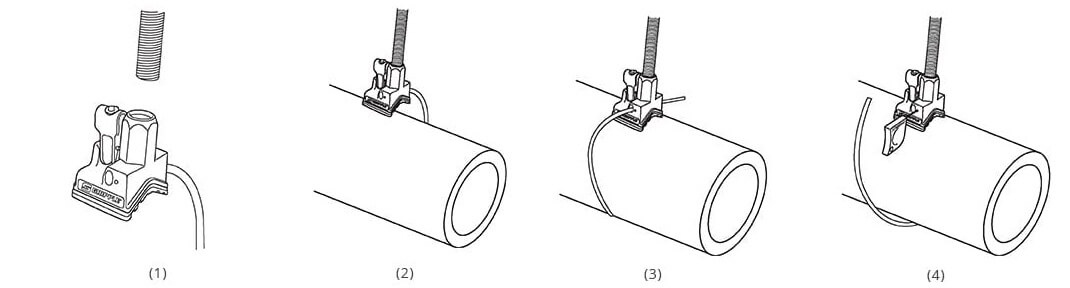

  • No tools are required for installation
  • No risk of losing screws on site
  • Self-click closure for easy and fast fixing
  • Improved insulation against vibration
  • Easy site storage, reduces waste
  • Easy to calculate the quantity on a project plan
  • Available up to 45 kg SWL, with a 5:1 safety factor
