Description

Ideal for clamping onto an I-Beam when its not possible to loop around with the catenary wire, or when the height of the beam is too great.

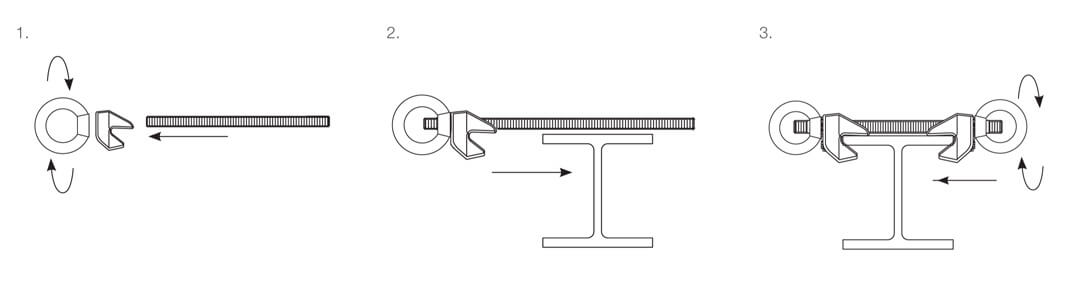

• Fitted easily and securely by hand, no on-site power required
• Removes the need to loop around an I-beam
• Ideal for large I-beams that would create an angle greater than 60 at the Gripple Lockable
• Aesthetically pleasing
• Designed for use with M12 threaded rod (not supplied)
• Suitable for I-beams 6-19 mm in thickness
• Load rated at 340kg with a 5:1 safety factor
• No additional washers or nuts required
